Joepai Brand Hoge kwaliteit zekerheid, Joepai biedt een uitgebreide Inleiding tot ANSI Standard 2-PC flense kogelventiel met ISO 5211 Direct montagekussen gerelateerd Normen, selectie, functies, structurele diagrammen, specificaties en modellen; Afmetingen, werkingsprincipe, installatie en onderhoud, en Balklep Producthandleiding; Om een reeks flenskokklepproducten te bieden met hoge kwaliteit, hoge prestaties, hoge normen, hoge levensduur en Betaalbare prijzen voor onze klanten.
De klepstam is uitgerust met antistatische instellingen
Ontwerp van klepstam Anti -extrusieapparaat
Er zijn drukhulpgaten op de stalen balgroef
Het aannemen van gedeparaffineerde gieting
Ontwerp: ANSI 16.34
Eindflens: ASME B16.5
Face-to-Face Dimensions: ASME B16.10
Inspectie & test: API 598
SIZE:1/2"~10",PRESSURE:150LB~300LB

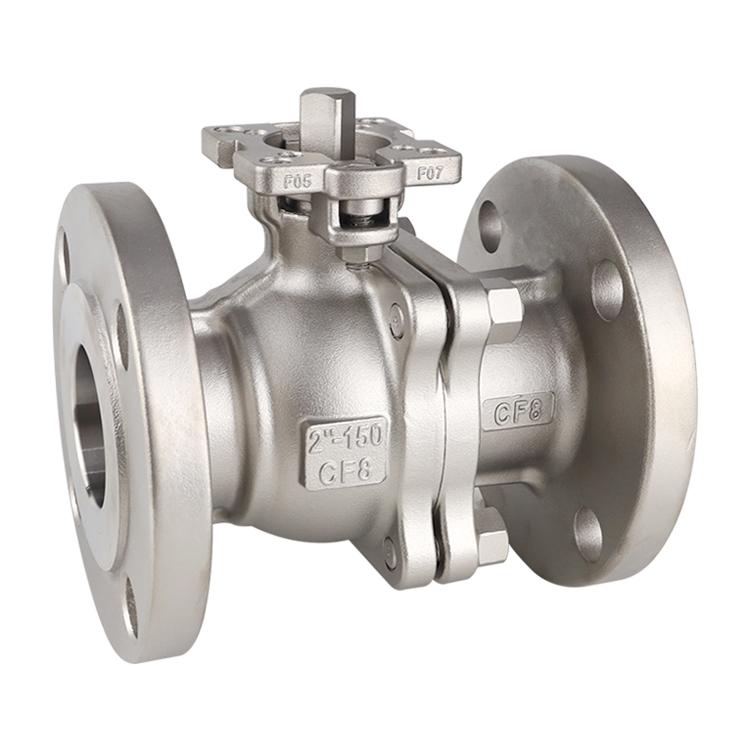

Volledige poort, ISO5211 Direct montagekussen
Blowout-Proof STEM-ontwerp

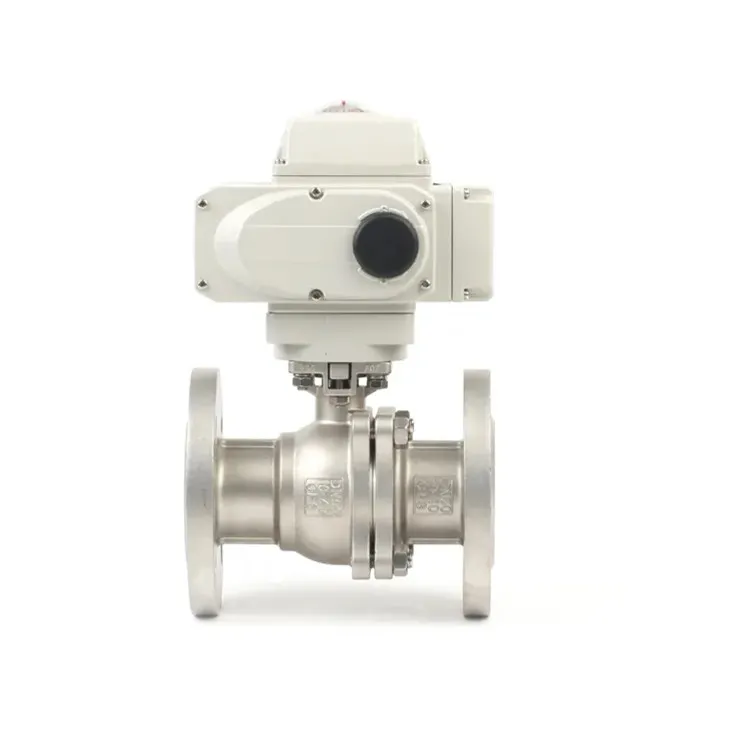

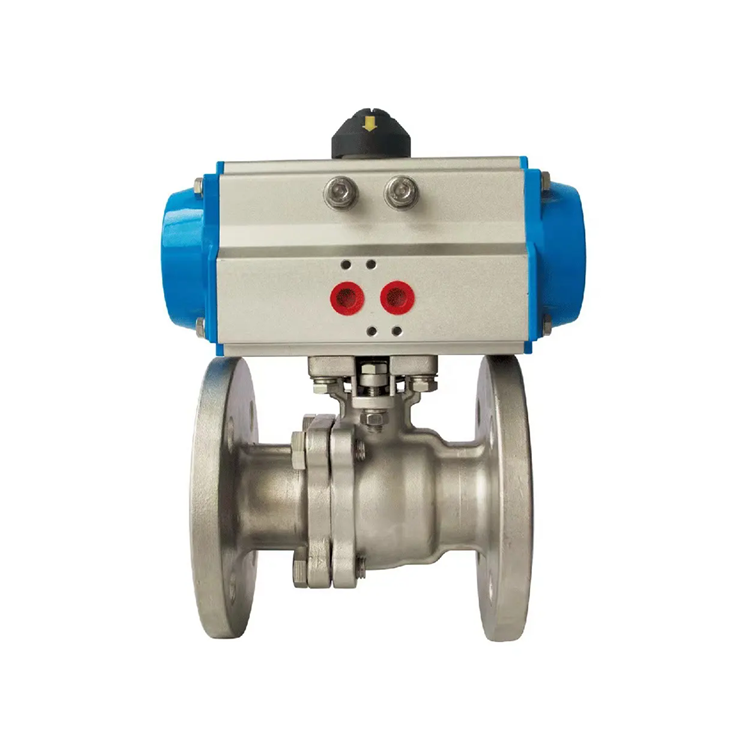

Hendelbewerking met vergrendelingsapparaat, pneumatische of elektrische actuator
Investeringsuitgifte

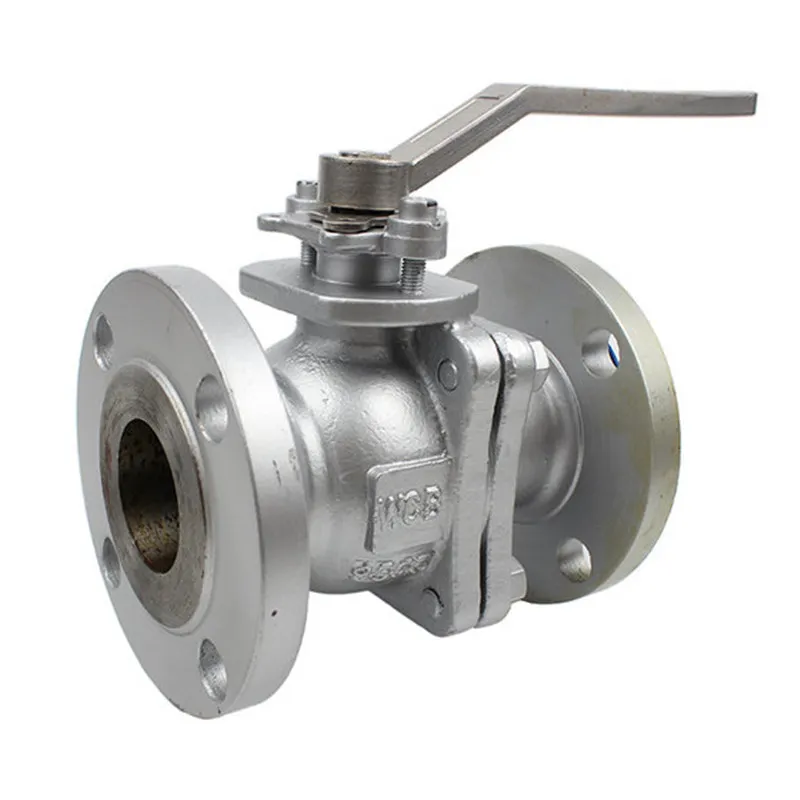

Materiaal: koolstofstaal WCB/DIN1.0619
Roestvrij staal 304/1.4308
Roestvrij staal 316/1.4408
Geschikt: water, olie, gas
| 1 | Lichaam | WCB/ CF8/ CF8M | 9 | Stoten pads | WCB/ CF8/ CF8M |
| 2 | Stoelen | PTFE | 10 | Verpakking | WCB/ CF8/ CF8M |
| 3 | Bal | SS304/ SS316 | 11 | Stang | SS304/ SS316 |
| 4 | Bout | SS304/ SS316 | 12 | Klier | SS304/ SS316 |
| 5 | Lente wasmachine | SS304/ SS316 | 13 | Moer | SS304/ SS316 |
| 6 | Moer | SS304/ SS316 | 14 | Lente wasmachine | SS304/ SS316 |
| 7 | Dop | WCB/ CF8/ CF8M | 15 | Hefboom | Ss |
| 8 | Pakking | WCB/ CF8/ CF8M |
| NPS | DN | L | D | D1 | D2 | b | t | Z-φd |
| 1/2 " | 15 | 108 | 90 | 60.3 | 34.9 | 11.5 | 1.6 | 4-F16 |
| 3/4 " | 20 | 117 | 100 | 69.9 | 42.9 | 13 | 1.6 | 4-F16 |
| 1 " | 25 | 127 | 110 | 79.4 | 50.8 | 14.5 | 1.6 | 4-F16 |
| 11/4 " | 32 | 140 | 115 | 88.9 | 63.5 | 16 | 1.6 | 4-F16 |
| 11/2 " | 40 | 165 | 125 | 98.4 | 73 | 17.5 | 1.6 | 4-F16 |
| 2 " | 50 | 178 | 150 | 120.7 | 92.1 | 19.5 | 1.6 | 4-F19 |
| 21/2 " | 65 | 190 | 180 | 139.7 | 104.8 | 22.5 | 1.6 | 4-F19 |
| 3 " | 80 | 203 | 190 | 152.4 | 127 | 24 | 1.6 | 4-F19 |
| 4 " | 100 | 229 | 230 | 190.5 | 157.2 | 24 | 1.6 | 4-F19 |
| 5 " | 125 | 356 | 255 | 215.9 | 185.7 | 24 | 1.6 | 4-F22 |
| 6 " | 150 | 394 | 280 | 241.3 | 215.9 | 25.5 | 1.6 | 4-F22 |
| 8 " | 200 | 457 | 345 | 298.5 | 269.9 | 29 | 1.6 | 4-F22 |
| 10 " | 250 | 533 | 405 | 362 | 323.8 | 30.5 | 1.6 | 4-F25 |
| 12 " | 300 | 610 | 485 | 431.8 | 381 | 32 | 1.6 | 4-F25 |
| 14 " | 350 | 686 | 535 | 476.3 | 412.8 | 35 | 1.6 | 4-F29 |
| 16 " | 400 | 762 | 595 | 539.8 | 469.9 | 37 | 1.6 | 4-F29 |
| NPS | DN | L | D | D1 | D2 | b | t | Z-φd |
| 1/2 " | 15 | 140 | 95 | 66.7 | 34.9 | 14.5 | 1.6 | 4-F16 |
| 3/4 " | 20 | 152 | 115 | 82.6 | 42.9 | 16 | 1.6 | 4-F19 |
| 1 " | 25 | 165 | 125 | 88.9 | 50.8 | 17.5 | 1.6 | 4-F19 |
| 11/4 " | 32 | 178 | 135 | 98.4 | 63.5 | 19.5 | 1.6 | 4-F19 |
| 11/2 " | 40 | 190 | 155 | 114.3 | 73 | 21 | 1.6 | 4-F22 |
| 2 " | 50 | 216 | 165 | 127 | 92.1 | 22.5 | 1.6 | 8-F19 |
| 21/2 " | 65 | 241 | 190 | 149.2 | 104.8 | 25.5 | 1.6 | 8-F22 |
| 3 " | 80 | 282 | 210 | 168.3 | 127 | 29 | 1.6 | 8-F22 |
| 4 " | 100 | 305 | 255 | 200 | 157.2 | 32 | 1.6 | 8-F22 |
| 5 " | 125 | 381 | 280 | 235 | 185.7 | 35 | 1.6 | 8-F22 |
| 6 " | 150 | 403 | 320 | 269.9 | 215.9 | 37 | 1.6 | 12-F22 |
| 8 " | 200 | 502 | 380 | 330.2 | 269.9 | 41.5 | 1.6 | 12-F25 |
| 10 " | 250 | 568 | 445 | 387.4 | 323.8 | 48 | 1.6 | 16-F29 |
| 12 " | 300 | 648 | 520 | 450.8 | 381 | 51.0 | 1.6 | 16-F32 |
| 14 " | 350 | 762 | 585 | 514.4 | 412.8 | 54.0 | 1.6 | 20-F32 |
| 16 " | 400 | 838 | 650 | 571.5 | 469.9 | 57.5 | 1.6 | 20-F35 |
